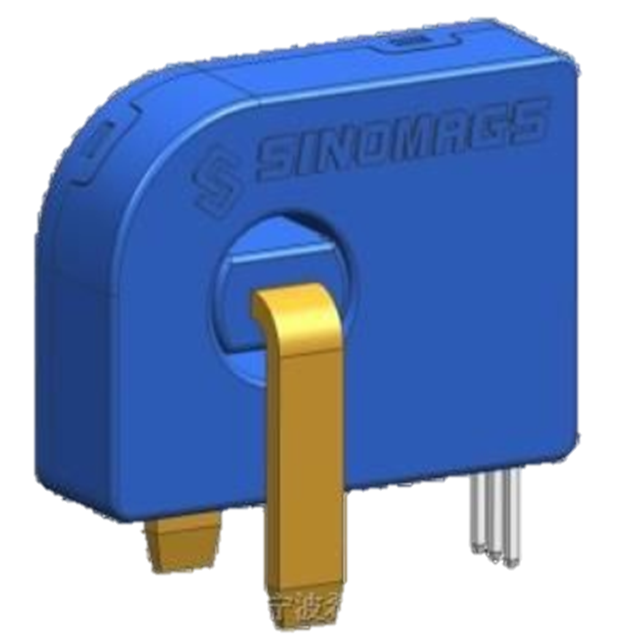

High precision current sensorProduct advantages:

1. High precision; 2. Low insertion loss; 3. Small size and space saving; 4. A design that can be extended to a wide current range; 5. Strong ability to resist external interference; 6. Strong insulation and isolation performance; 7. Low temperature coefficient;

Product Features:

1. TMR tunnel magnetic resistance; 2. Adopt open-loop principle; 3. Electrical isolation between primary levels; 4. Insulation voltage 4 kV/AC; 5. Single power supply; 6. PCB level installation; 7. Large measurement range (3 ′ IPN)

Main applications:

1. Frequency converter; 2. DC motor; 3. Uninterruptible power supply; 4. Switching power supply; 5. Welding machine power supply; 6. Communication power supply;

For detailed electronic information, please contact the technical personnel of Weikewei.
